FilePickerNode

An interactive file and folder picker with breadcrumb navigation, keyboard-driven directory traversal, scrolling, and type-to-filter search. Supports file-only, directory-only, or mixed selection in single or multi-select modes.

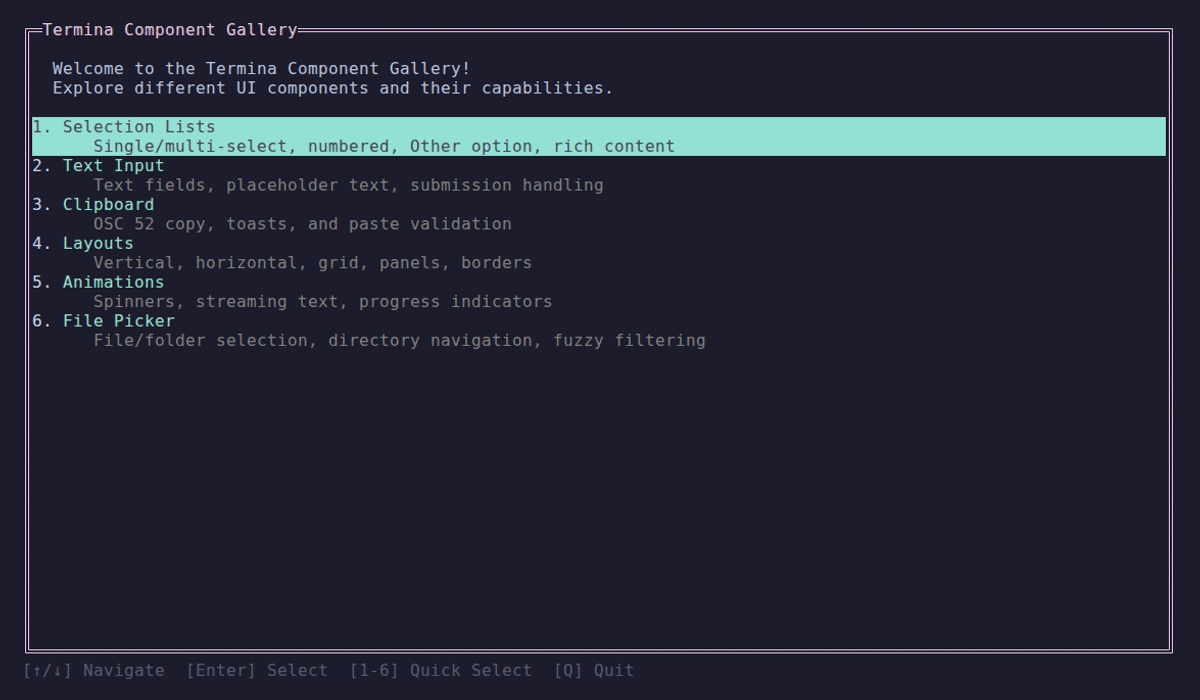

FilePickerNode demo: browsing directories, filtering, and selecting files and folders

Side-by-side file and folder pickers in the gallery — navigation, filtering, and selection.

Basic Usage

csharp

// Pick a single file, starting in the current directory
// (or pass a path: Layouts.FilePicker("/home/user/projects"))
var picker = Layouts.FilePicker()
    .WithMode(FilePickerMode.Files)
    .WithSelectionMode(FilePickerSelectionMode.Single);

picker.SelectionConfirmed.Subscribe(paths => {
    var file = paths[0];
    Console.WriteLine($"Selected: {file}");
});

picker.Cancelled.Subscribe(_ => {
    // User pressed Escape — close the picker
});

The picker loads its directory lazily on first render or focus, so constructing one is cheap.

Features

Breadcrumb header showing the current directory
Enter to descend into folders, Backspace to go up
Type-to-filter: any printable character (or /) opens an inline filter bar
File-only, directory-only, or mixed selection modes
Single and multi-select (Space toggles, Enter confirms)
Optional glob filter (e.g. *.cs) applied to files
Hidden-file filtering (dotfiles excluded by default)
Scrolling with scrollbar for large directories
Pluggable IFileSystemProvider for deterministic testing

Picker Modes

FilePickerMode controls which entries are selectable. Directories are always shown for navigation (except files are hidden entirely in Directories mode):

csharp

// Only files can be selected; folders are navigation-only
Layouts.FilePicker().WithMode(FilePickerMode.Files);

// Only folders are shown and selectable (Space selects, Enter opens)
Layouts.FilePicker().WithMode(FilePickerMode.Directories);

// Both files and folders are selectable
Layouts.FilePicker().WithMode(FilePickerMode.All);

Because Enter opens an untoggled directory, Space is the selection gesture for folders. This keeps deep navigation possible in directory-only mode. In multi-select, Enter on a directory you have toggled (its [x] is visible on the highlighted row) confirms the selection instead.

Selection Modes

Single Select (Default)

csharp

var picker = Layouts.FilePicker("/home/user/projects")
    .WithSelectionMode(FilePickerSelectionMode.Single);

picker.SelectionConfirmed.Subscribe(paths => {
    OpenFile(paths[0]);
});

Enter on a file confirms it immediately.
Space on a selectable entry (per the picker mode) also confirms it.

Multi-Select

csharp

var picker = Layouts.FilePicker()
    .WithSelectionMode(FilePickerSelectionMode.Multi);

picker.SelectionConfirmed.Subscribe(paths => {
    foreach (var path in paths)
        Stage(path);
});

Space toggles the highlighted entry and moves the cursor down.
Enter on a file confirms all toggled entries plus the highlighted file.
Enter on a toggled directory confirms the toggled set; an untoggled directory opens, so you can keep browsing.
Selections persist across directory navigation — the footer shows a running count (e.g. 3 selected), and confirmation emits the full cross-directory set.

Keyboard Shortcuts

Browsing

Key	Action
`↑/↓`	Move highlight
`Home` / `End`	Jump to first/last entry
`Enter`	Open directory / confirm selection (a toggled directory confirms in multi-select)
`Backspace`	Go up one directory
`Space`	Select (single) or toggle (multi)
`/` or any letter	Open the filter bar
`Escape`	Cancel the picker (emits `Cancelled`)

Filtering

Key	Action
Printable keys	Type into the filter (spaces allowed)
`↑/↓` / `Home` / `End`	Navigate the filtered list
`Enter`	Open / confirm the highlighted match
`Backspace`	Delete a character (exits filter when empty)
`Escape`	Clear the filter and return to browsing

The filter is a case-insensitive substring match against entry names. Filtering resets when the picker loses focus or the user navigates to another directory.

Glob File Filter

Restrict the files shown with a glob pattern. Directories always pass through so navigation still works:

csharp

var picker = Layouts.FilePicker()
    .WithFileFilter("*.cs");   // only .cs files are listed

Hidden Files

Dotfiles (names starting with .) are hidden by default:

csharp

var picker = Layouts.FilePicker()
    .WithShowHidden();   // include .gitignore, .config, etc.

Sizing

By default the picker auto-sizes with a maximum of 10 visible rows. Use WithFillHeight() to expand into the parent's available space, or WithVisibleRows() for a fixed row count:

csharp

// Fill a panel
var picker = Layouts.FilePicker()
    .WithFillHeight();

// Or a fixed window of 15 rows
var picker = Layouts.FilePicker()
    .WithVisibleRows(15);

Styling

csharp

Layouts.FilePicker()
    .WithHighlightColors(Color.Black, Color.Cyan)  // Highlighted row colors
    .WithDirectoryColor(Color.BrightCyan)          // Directory entry color
    .WithFileColor(Color.Default);                 // File entry color

Testing with IFileSystemProvider

The picker reads the filesystem through IFileSystemProvider, so tests can supply a fake provider and never touch the disk:

csharp

public class FakeFileSystemProvider : IFileSystemProvider
{
    private readonly Dictionary<string, List<FileSystemEntry>> _dirs = new();

    public FakeFileSystemProvider AddDirectory(string path, params FileSystemEntry[] entries)
    {
        // The GetEntries contract requires directories first, then files, alphabetical
        _dirs[path] = entries
            .OrderBy(e => !e.IsDirectory)
            .ThenBy(e => e.Name, StringComparer.OrdinalIgnoreCase)
            .ToList();
        return this;
    }

    public IReadOnlyList<FileSystemEntry> GetEntries(string path) =>
        _dirs.TryGetValue(path, out var e) ? e : [];

    public bool DirectoryExists(string path) => _dirs.ContainsKey(path);

    public string? GetParentDirectory(string path)
    {
        var i = path.LastIndexOf('/');
        return i <= 0 ? (i == 0 ? "/" : null) : path[..i];
    }
}

[Fact]
public void Enter_On_Directory_NavigatesInto()
{
    var fs = new FakeFileSystemProvider()
        .AddDirectory("/root", new FileSystemEntry("src", "/root/src", true))
        .AddDirectory("/root/src");

    using var picker = new FilePickerNode("/root").WithFileSystemProvider(fs);
    picker.OnFocused();

    picker.HandleInput(new ConsoleKeyInfo('\0', ConsoleKey.Enter, false, false, false));

    Assert.Equal("/root/src", picker.CurrentPath);
}

The default provider (DefaultFileSystemProvider) wraps System.IO, skips entries it cannot access (UnauthorizedAccessException, IOException), and sorts directories first, then files, both alphabetically.

Complete Example

The recommended pattern — ViewModel handles state, Page owns nodes and Focus:

ViewModel:

csharp

public class OpenFileViewModel : ReactiveViewModel
{
    public ReactiveProperty<string> StatusMessage { get; } = new("Pick a file");

    public void OnFileSelected(IReadOnlyList<string> paths)
    {
        StatusMessage.Value = $"Opened {paths[0]}";
        // load the file...
    }

    public override void Dispose()
    {
        StatusMessage.Dispose();
        base.Dispose();
    }
}

Page:

csharp

public class OpenFilePage : ReactivePage<OpenFileViewModel>
{
    private FilePickerNode _picker = null!;

    public override void OnNavigatedTo()
    {
        base.OnNavigatedTo();

        // Don't register Escape at the page level — the picker needs it
        // for clearing filters. Use the Cancelled observable instead.
        _picker.SelectionConfirmed
            .Subscribe(paths => ViewModel.OnFileSelected(paths))
            .DisposeWith(Subscriptions);

        _picker.Cancelled
            .Subscribe(_ => Navigate("/menu"))
            .DisposeWith(Subscriptions);

        Focus.SetFocus(_picker);
    }

    public override ILayoutNode BuildLayout()
    {
        _picker = Layouts.FilePicker(Environment.CurrentDirectory)
            .WithMode(FilePickerMode.Files)
            .WithFileFilter("*.json")
            .WithFillHeight();

        return Layouts.Vertical()
            .WithChild(_picker)
            .WithChild(
                ViewModel.StatusMessage
                    .Select<string, ILayoutNode>(msg => new TextNode(msg))
                    .AsLayout()
                    .Height(1));
    }
}

Escape and page key bindings

Page-level KeyBindings run in the capture phase, before the focused component sees the key. Registering Escape at the page level will prevent the picker from clearing its filter. Subscribe to Cancelled instead.

Observables

Observable	Type	Description
`SelectionConfirmed`	`Observable<IReadOnlyList<string>>`	Emits selected full paths on confirmation
`Cancelled`	`Observable<Unit>`	Emits when Escape is pressed while browsing
`DirectoryChanged`	`Observable<string>`	Emits the new path when the user navigates (the initial lazy load does not emit)
`Invalidated`	`Observable<Unit>`	Emits when a redraw is needed

API Reference

Constructor

Constructor	Description
`FilePickerNode(string? startPath = null)`	Create a picker; defaults to `Environment.CurrentDirectory`

Properties

Property	Type	Description
`CurrentPath`	`string`	The directory currently displayed
`CanFocus`	`bool`	Always `true`
`HasFocus`	`bool`	Whether the picker has focus
`FocusPriority`	`int`	`10` (lower than modal)

Fluent Methods

Method	Description
`.WithStartPath(string)`	Set the initial directory
`.WithMode(FilePickerMode)`	What is selectable: `Files`, `Directories`, or `All`
`.WithSelectionMode(FilePickerSelectionMode)`	`Single` or `Multi`
`.WithShowHidden(bool)`	Include dotfiles (default `false`)
`.WithFileFilter(string?)`	Glob pattern applied to files (e.g. `*.cs`)
`.WithHighlightColors(fg, bg)`	Highlighted row colors
`.WithDirectoryColor(Color)`	Directory entry color
`.WithFileColor(Color)`	File entry color
`.WithVisibleRows(int)`	Fixed visible row count (disables fill)
`.WithFillHeight(bool)`	Fill available vertical space
`.WithFileSystemProvider(IFileSystemProvider)`	Override filesystem access (testing)

Enums

FilePickerMode

Value	Description
`Files`	Only files are selectable; directories are navigation-only
`Directories`	Only directories are shown and selectable
`All`	Both files and directories are selectable

FilePickerSelectionMode

Value	Description
`Single`	Confirm exactly one entry
`Multi`	Toggle entries with Space, confirm with Enter

FileSystemEntry

Property	Type	Description
`Name`	`string`	Entry name (no path)
`FullPath`	`string`	Absolute path
`IsDirectory`	`bool`	Whether the entry is a directory
`Size`	`long?`	File size in bytes (null for directories)
`LastModified`	`DateTimeOffset?`	Last write time

Source Code

View FilePickerNode implementation

csharp

// Copyright (c) Petabridge, LLC. All rights reserved.
// Licensed under the Apache 2.0 license. See LICENSE file in the project root for full license information.

using System.IO.Enumeration;
using R3;
using Termina.Rendering;
using Termina.Terminal;

namespace Termina.Layout;

/// <summary>
/// An interactive file/folder picker with breadcrumb navigation, scrolling, and fuzzy filtering.
/// </summary>
public sealed class FilePickerNode : IFocusable, IInvalidatingNode, IActivatableNode, ILayoutRuntimeContextAware
{
    private readonly Subject<Unit> _invalidated = new();
    private readonly Subject<IReadOnlyList<string>> _selectionConfirmed = new();
    private readonly Subject<Unit> _cancelled = new();
    private readonly Subject<string> _directoryChanged = new();

    private IFileSystemProvider _fileSystem = DefaultFileSystemProvider.Instance;
    private string _currentPath;
    private List<FileSystemEntry> _entries = new();
    private List<FileSystemEntry> _filteredEntries = new();
    private readonly HashSet<string> _selectedPaths = new();

    private int _highlightedIndex;
    private int _scrollOffset;
    private int _visibleRows = 10;
    private int _effectiveRows = 10;
    private bool _hasFocus;
    private bool _disposed;
    private bool _isLoaded;

    // Filter state
    private bool _isFiltering;
    private TextInputNode? _filterInput;
    private LayoutRuntimeContext? _runtimeContext;
    private IDisposable? _filterInvalidationSub;

    // Configuration
    private FilePickerMode _mode = FilePickerMode.Files;
    private FilePickerSelectionMode _selectionMode = FilePickerSelectionMode.Single;
    private bool _showHidden;
    private string? _fileFilter;
    private bool _fillHeight;
    private Color _highlightForeground = Color.Black;
    private Color _highlightBackground = Color.White;
    private Color _directoryColor = Color.BrightCyan;
    private Color _fileColor = Color.Default;

    // ASCII icons (avoids surrogate-pair/column-width issues with emoji)
    private const string DirIcon = "[D] ";
    private const string FileIcon = "    ";
    private const string FilterPrefix = "/ ";
    private const string BreadcrumbPrefix = ">> ";

    public FilePickerNode(string? startPath = null)
    {
        _currentPath = startPath ?? Environment.CurrentDirectory;
    }

    public Observable<Unit> Invalidated => _invalidated.AsObservable();

    /// <summary>
    /// Emits selected full paths when the user confirms a selection.
    /// </summary>
    public Observable<IReadOnlyList<string>> SelectionConfirmed => _selectionConfirmed.AsObservable();

    /// <summary>
    /// Emits when the user presses Escape while browsing (an active filter is cleared instead).
    /// </summary>
    public Observable<Unit> Cancelled => _cancelled.AsObservable();

    /// <summary>
    /// Emits the new directory path when the user navigates to a different directory.
    /// The initial lazy load does not emit.
    /// </summary>
    public Observable<string> DirectoryChanged => _directoryChanged.AsObservable();

    /// <inheritdoc />
    public void SetRuntimeContext(LayoutRuntimeContext context)
    {
        ArgumentNullException.ThrowIfNull(context);

        _runtimeContext = context;
        if (_filterInput is not null)
            LayoutRuntimeContextInjector.Apply(_filterInput, context);
    }

    public SizeConstraint WidthConstraint => SizeConstraint.FillRemaining();

    public SizeConstraint HeightConstraint => _fillHeight ? SizeConstraint.FillRemaining() : SizeConstraint.AutoSize();

    public bool CanFocus => true;

    public bool HasFocus => _hasFocus;

    public int FocusPriority => 10;

    /// <summary>
    /// Gets the current directory path being displayed.
    /// </summary>
    public string CurrentPath => _currentPath;

    #region Fluent Configuration

    public FilePickerNode WithStartPath(string path)
    {
        _currentPath = path;
        _isLoaded = false;
        return this;
    }

    public FilePickerNode WithMode(FilePickerMode mode)
    {
        _mode = mode;
        return this;
    }

    public FilePickerNode WithSelectionMode(FilePickerSelectionMode mode)
    {
        _selectionMode = mode;
        return this;
    }

    public FilePickerNode WithShowHidden(bool show = true)
    {
        _showHidden = show;
        return this;
    }

    public FilePickerNode WithFileFilter(string? globPattern)
    {
        _fileFilter = globPattern;
        return this;
    }

    public FilePickerNode WithHighlightColors(Color foreground, Color background)
    {
        _highlightForeground = foreground;
        _highlightBackground = background;
        return this;
    }

    public FilePickerNode WithDirectoryColor(Color color)
    {
        _directoryColor = color;
        return this;
    }

    public FilePickerNode WithFileColor(Color color)
    {
        _fileColor = color;
        return this;
    }

    public FilePickerNode WithVisibleRows(int rows)
    {
        _visibleRows = Math.Max(1, rows);
        _effectiveRows = _visibleRows;
        _fillHeight = false;
        return this;
    }

    public FilePickerNode WithFillHeight(bool fill = true)
    {
        _fillHeight = fill;
        return this;
    }

    public FilePickerNode WithFileSystemProvider(IFileSystemProvider provider)
    {
        _fileSystem = provider ?? throw new ArgumentNullException(nameof(provider));
        return this;
    }

    #endregion

    #region Focus Lifecycle

    public void OnFocused()
    {
        _hasFocus = true;
        EnsureLoaded();
        Invalidate();
    }

    public void OnBlurred()
    {
        _hasFocus = false;
        if (_isFiltering)
            StopFiltering();
        Invalidate();
    }

    public void OnActivate()
    {
        EnsureLoaded();
        _filterInput?.OnActivate();
    }

    public void OnDeactivate()
    {
        _filterInput?.OnDeactivate();
    }

    #endregion

    #region Input Handling

    public bool HandleInput(ConsoleKeyInfo key)
    {
        if (_isFiltering)
            return HandleFilterInput(key);

        return HandleBrowsingInput(key);
    }

    private bool HandleBrowsingInput(ConsoleKeyInfo key)
    {
        switch (key.Key)
        {
            case ConsoleKey.UpArrow:
            case ConsoleKey.DownArrow:
            case ConsoleKey.Home:
            case ConsoleKey.End:
                return HandleNavigationKey(key);

            case ConsoleKey.Enter:
                ActivateHighlighted();
                return true;

            case ConsoleKey.Backspace:
                NavigateUp();
                return true;

            case ConsoleKey.Escape:
                OnEscapePressed();
                return true;

            case ConsoleKey.Spacebar:
                HandleSpacebar();
                return true;

            default:
                // '/' activates filter; any printable char also activates filter + types it.
                // Alt/Ctrl chords are left for page-level bindings.
                if ((key.Modifiers & (ConsoleModifiers.Alt | ConsoleModifiers.Control)) != 0)
                    return false;

                if (key.KeyChar == '/')
                {
                    StartFiltering("");
                    return true;
                }

                if (!char.IsControl(key.KeyChar) && key.KeyChar != '\0')
                {
                    StartFiltering(key.KeyChar.ToString());
                    return true;
                }

                return false;
        }
    }

    private bool HandleFilterInput(ConsoleKeyInfo key)
    {
        switch (key.Key)
        {
            case ConsoleKey.Escape:
                StopFiltering();
                return true;

            case ConsoleKey.UpArrow:
            case ConsoleKey.DownArrow:
            case ConsoleKey.Home:
            case ConsoleKey.End:
                return HandleNavigationKey(key);

            case ConsoleKey.Enter:
                ActivateHighlighted();
                return true;

            default:
                if (_filterInput == null)
                    return false;

                // Backspace on an already-empty filter exits filter mode
                if (key.Key == ConsoleKey.Backspace && string.IsNullOrEmpty(_filterInput.Text))
                {
                    StopFiltering();
                    return true;
                }

                var textBefore = _filterInput.Text;
                var handled = _filterInput.HandleInput(key);
                if (handled)
                {
                    if (string.IsNullOrEmpty(_filterInput.Text))
                        StopFiltering();
                    else if (_filterInput.Text != textBefore)
                        ApplyFilter();
                }

                return handled;
        }
    }

    private bool HandleNavigationKey(ConsoleKeyInfo key)
    {
        switch (key.Key)
        {
            case ConsoleKey.UpArrow:
                MoveHighlight(-1);
                return true;
            case ConsoleKey.DownArrow:
                MoveHighlight(1);
                return true;
            case ConsoleKey.Home:
                _highlightedIndex = 0;
                EnsureVisible();
                Invalidate();
                return true;
            case ConsoleKey.End:
                _highlightedIndex = Math.Max(0, _filteredEntries.Count - 1);
                EnsureVisible();
                Invalidate();
                return true;
            default:
                return false;
        }
    }

    private void HandleSpacebar()
    {
        if (_highlightedIndex < 0 || _highlightedIndex >= _filteredEntries.Count)
            return;

        var entry = _filteredEntries[_highlightedIndex];

        if (_selectionMode == FilePickerSelectionMode.Multi)
        {
            ToggleSelection();
        }
        else
        {
            // Single mode: Space selects the item if it's selectable per mode
            if (IsSelectable(entry))
                EmitSelectionConfirmed(new[] { entry.FullPath });
        }
    }

    private void OnEscapePressed()
    {
        if (!_disposed)
            _cancelled.OnNext(Unit.Default);
    }

    #endregion

    #region Navigation

    private void EnsureLoaded()
    {
        if (!_isLoaded)
            LoadDirectory(_currentPath, emitChanged: false);
    }

    private void LoadDirectory(string path, bool emitChanged = true)
    {
        if (!_fileSystem.DirectoryExists(path))
        {
            // Latch so we don't retry filesystem I/O on every render/focus.
            // WithStartPath resets the latch to allow a reload.
            _isLoaded = true;
            return;
        }

        _currentPath = path;
        var allEntries = _fileSystem.GetEntries(path);

        _entries = new List<FileSystemEntry>(allEntries.Count);
        foreach (var e in allEntries)
        {
            if (!_showHidden && e.Name.StartsWith('.'))
                continue;
            if (!e.IsDirectory && _fileFilter != null && !MatchesGlob(e.Name, _fileFilter))
                continue;
            if (_mode == FilePickerMode.Directories && !e.IsDirectory)
                continue;
            _entries.Add(e);
        }

        _filteredEntries = new List<FileSystemEntry>(_entries);
        _highlightedIndex = 0;
        _scrollOffset = 0;
        _isLoaded = true;

        if (_isFiltering)
        {
            _isFiltering = false;
            _filterInput?.OnBlurred();
            _filterInput?.OnDeactivate();
        }

        if (emitChanged)
            EmitDirectoryChanged(_currentPath);
        Invalidate();
    }

    private void NavigateUp()
    {
        var parent = _fileSystem.GetParentDirectory(_currentPath);
        if (parent != null)
            LoadDirectory(parent);
    }

    private void ActivateHighlighted()
    {
        if (_highlightedIndex < 0 || _highlightedIndex >= _filteredEntries.Count)
            return;

        var entry = _filteredEntries[_highlightedIndex];

        if (entry.IsDirectory)
        {
            // Enter on a toggled directory confirms the selection; an untoggled
            // directory always opens, so deep navigation stays possible.
            if (_selectionMode == FilePickerSelectionMode.Multi &&
                _selectedPaths.Contains(entry.FullPath))
            {
                EmitSelectionConfirmed(_selectedPaths.ToList());
            }
            else
            {
                LoadDirectory(entry.FullPath);
            }

            return;
        }

        // File selected
        if (_selectionMode == FilePickerSelectionMode.Single)
        {
            EmitSelectionConfirmed(new[] { entry.FullPath });
        }
        else
        {
            // Confirm the toggled set plus the highlighted file, without
            // mutating the toggle state.
            var selected = _selectedPaths.ToList();
            if (!_selectedPaths.Contains(entry.FullPath))
                selected.Add(entry.FullPath);
            EmitSelectionConfirmed(selected);
        }
    }

    private void ToggleSelection()
    {
        if (_highlightedIndex < 0 || _highlightedIndex >= _filteredEntries.Count)
            return;

        var entry = _filteredEntries[_highlightedIndex];

        if (!IsSelectable(entry))
            return;

        if (!_selectedPaths.Remove(entry.FullPath))
            _selectedPaths.Add(entry.FullPath);

        MoveHighlight(1);
    }

    private bool IsSelectable(FileSystemEntry entry)
    {
        return _mode switch
        {
            FilePickerMode.Files => !entry.IsDirectory,
            FilePickerMode.Directories => entry.IsDirectory,
            FilePickerMode.All => true,
            _ => false
        };
    }

    #endregion

    #region Filtering

    private void StartFiltering(string initialText)
    {
        _isFiltering = true;
        if (_filterInput == null)
        {
            _filterInput = new TextInputNode()
                .WithPlaceholder("Type to filter...");
            if (_runtimeContext is not null)
                LayoutRuntimeContextInjector.Apply(_filterInput, _runtimeContext);

            // Bridge the embedded input's invalidations (cursor blink) to ours
            _filterInvalidationSub = _filterInput.Invalidated.Subscribe(_ => Invalidate());
        }
        _filterInput.OnActivate();
        _filterInput.OnFocused();
        _filterInput.Clear();

        // Seed with initial text if provided
        if (!string.IsNullOrEmpty(initialText))
        {
            foreach (var c in initialText)
            {
                _filterInput.HandleInput(new ConsoleKeyInfo(c, ConsoleKey.None, false, false, false));
            }
        }

        ApplyFilter();
        Invalidate();
    }

    private void StopFiltering()
    {
        _isFiltering = false;
        _filterInput?.OnBlurred();
        _filterInput?.OnDeactivate();
        _filteredEntries = new List<FileSystemEntry>(_entries);
        _highlightedIndex = Math.Min(_highlightedIndex, Math.Max(0, _filteredEntries.Count - 1));
        _scrollOffset = 0;
        EnsureVisible();
        Invalidate();
    }

    private void ApplyFilter()
    {
        var filterText = _filterInput?.Text ?? "";
        if (string.IsNullOrEmpty(filterText))
        {
            _filteredEntries = new List<FileSystemEntry>(_entries);
        }
        else
        {
            _filteredEntries = _entries
                .Where(e => e.Name.Contains(filterText, StringComparison.OrdinalIgnoreCase))
                .ToList();
        }

        _highlightedIndex = 0;
        _scrollOffset = 0;
        Invalidate();
    }

    #endregion

    #region Scrolling

    private void MoveHighlight(int delta)
    {
        if (_filteredEntries.Count == 0)
            return;

        _highlightedIndex = Math.Clamp(_highlightedIndex + delta, 0, _filteredEntries.Count - 1);
        EnsureVisible();
        Invalidate();
    }

    private void EnsureVisible()
    {
        // _effectiveRows tracks the rows actually rendered, which may be fewer
        // than the configured _visibleRows when the parent allocates less space.
        if (_highlightedIndex < _scrollOffset)
        {
            _scrollOffset = _highlightedIndex;
        }
        else if (_highlightedIndex >= _scrollOffset + _effectiveRows)
        {
            _scrollOffset = _highlightedIndex - _effectiveRows + 1;
        }
    }

    #endregion

    #region Measure & Render

    public Size Measure(Size available)
    {
        // Layout: breadcrumb (1) + optional filter (1) + file list + hints (1)
        var headerLines = 1 + (_isFiltering ? 1 : 0);
        var footerLines = 1;

        if (_fillHeight)
        {
            _visibleRows = Math.Max(1, available.Height - headerLines - footerLines);
            _effectiveRows = _visibleRows;
            return new Size(available.Width, available.Height);
        }

        // Reserve at least one row: empty lists render an "Empty directory"/"No matches" message
        var listHeight = Math.Max(1, Math.Min(_filteredEntries.Count, _visibleRows));
        var totalHeight = headerLines + listHeight + footerLines;
        return new Size(available.Width, totalHeight);
    }

    public void Render(IRenderContext context, Rect bounds)
    {
        if (!bounds.HasArea)
            return;

        // Lazy-load on first render so unfocused pickers show content
        EnsureLoaded();

        var sub = context.CreateSubContext(bounds);
        var currentRow = 0;
        var width = bounds.Width;

        // Breadcrumb
        RenderBreadcrumb(sub, currentRow, width);
        currentRow++;

        // Filter bar (if active)
        if (_isFiltering)
        {
            RenderFilterBar(sub, currentRow, width);
            currentRow++;
        }

        // Recalculate visible rows in fill mode
        var footerLines = 1;
        var availableForList = Math.Max(0, bounds.Height - currentRow - footerLines);
        if (_fillHeight)
            _visibleRows = Math.Max(1, availableForList);

        var listHeight = Math.Min(_filteredEntries.Count, Math.Min(_visibleRows, availableForList));

        // Keep scroll math in sync with what is actually rendered
        _effectiveRows = Math.Max(1, Math.Min(_visibleRows, availableForList));
        if (listHeight > 0)
            _scrollOffset = Math.Clamp(_scrollOffset, 0, Math.Max(0, _filteredEntries.Count - listHeight));

        // File list
        RenderFileList(sub, currentRow, width, listHeight);
        currentRow += Math.Max(listHeight, 1);

        // Key hints footer
        if (currentRow < bounds.Height)
            RenderFooter(sub, currentRow, width);
    }

    private void RenderBreadcrumb(IRenderContext context, int row, int width)
    {
        if (width <= 0) return;

        context.SetForeground(Color.BrightYellow);
        context.SetDecoration(TextDecoration.Bold);

        var pathDisplay = _currentPath;
        var maxPathWidth = width - BreadcrumbPrefix.Length;
        if (maxPathWidth > 3 && pathDisplay.Length > maxPathWidth)
            pathDisplay = "..." + pathDisplay[(pathDisplay.Length - maxPathWidth + 3)..];
        else if (maxPathWidth >= 0 && pathDisplay.Length > maxPathWidth)
            pathDisplay = maxPathWidth > 0 ? pathDisplay[..maxPathWidth] : "";

        context.WriteAt(0, row, BreadcrumbPrefix + pathDisplay);
        context.SetDecoration(TextDecoration.None);
        context.ResetColors();
    }

    private void RenderFilterBar(IRenderContext context, int row, int width)
    {
        context.SetForeground(Color.BrightMagenta);
        context.WriteAt(0, row, FilterPrefix);

        if (_filterInput != null)
        {
            var inputX = FilterPrefix.Length;
            var inputBounds = new Rect(inputX, row, Math.Max(1, width - inputX), 1);
            var inputContext = context.CreateSubContext(inputBounds);
            _filterInput.Render(inputContext, new Rect(0, 0, inputBounds.Width, 1));
        }

        context.ResetColors();
    }

    private void RenderFileList(IRenderContext context, int startRow, int width, int listHeight)
    {
        if (_filteredEntries.Count == 0)
        {
            context.SetForeground(Color.BrightBlack);
            context.WriteAt(0, startRow, _isFiltering ? "No matches" : "Empty directory");
            context.ResetColors();
            return;
        }

        var needsScrollbar = _filteredEntries.Count > listHeight;
        var contentWidth = needsScrollbar ? width - 1 : width;

        for (var i = 0; i < listHeight && (_scrollOffset + i) < _filteredEntries.Count; i++)
        {
            var entryIndex = _scrollOffset + i;
            var entry = _filteredEntries[entryIndex];
            var isHighlighted = entryIndex == _highlightedIndex && _hasFocus;
            var isSelected = _selectedPaths.Contains(entry.FullPath);
            var row = startRow + i;

            RenderEntry(context, entry, row, contentWidth, isHighlighted, isSelected);
        }

        if (needsScrollbar)
            RenderScrollbar(context, width - 1, startRow, listHeight);
    }

    private void RenderEntry(IRenderContext context, FileSystemEntry entry, int row, int width,
        bool isHighlighted, bool isSelected)
    {
        // Build prefix: cursor + checkbox (multi) + icon
        var cursor = isHighlighted ? "> " : "  ";
        var checkbox = "";
        if (_selectionMode == FilePickerSelectionMode.Multi)
        {
            checkbox = IsSelectable(entry) ? (isSelected ? "[x] " : "[ ] ") : "    ";
        }

        var icon = entry.IsDirectory ? DirIcon : FileIcon;
        var name = entry.IsDirectory ? entry.Name + "/" : entry.Name;

        var prefix = cursor + checkbox + icon;
        var displayText = prefix + name;

        if (width <= 0) return;

        if (displayText.Length > width && width > 1)
            displayText = displayText[..(width - 1)] + "~";
        else if (displayText.Length > width)
            displayText = displayText[..width];

        // Apply highlight or normal colors
        if (isHighlighted)
        {
            context.SetBackground(_highlightBackground);
            context.Fill(0, row, width, 1, ' ');
            context.SetForeground(_highlightForeground);
        }
        else if (isSelected)
        {
            context.SetForeground(Color.BrightGreen);
        }
        else
        {
            context.SetForeground(entry.IsDirectory ? _directoryColor : _fileColor);
        }

        context.WriteAt(0, row, displayText);
        context.ResetColors();
    }

    private void RenderScrollbar(IRenderContext context, int x, int startRow, int height)
    {
        var totalItems = _filteredEntries.Count;
        if (totalItems <= height)
            return;

        var thumbSize = Math.Max(1, height * height / totalItems);
        var thumbPos = _scrollOffset * (height - thumbSize) / Math.Max(1, totalItems - height);

        context.SetForeground(Color.BrightBlack);
        for (var row = 0; row < height; row++)
        {
            var isThumb = row >= thumbPos && row < thumbPos + thumbSize;
            context.WriteAt(x, startRow + row, isThumb ? '#' : '|');
        }
        context.ResetColors();
    }

    private void RenderFooter(IRenderContext context, int row, int width)
    {
        context.SetForeground(Color.BrightBlack);

        string hints;
        if (_isFiltering)
        {
            hints = "[Enter] Open  [Esc] Clear filter";
        }
        else if (_selectionMode == FilePickerSelectionMode.Multi)
        {
            hints = _selectedPaths.Count > 0
                ? $"{_selectedPaths.Count} selected  [Space] Toggle  [Enter] Open/Confirm  [Backspace] Up  [Esc] Cancel"
                : "[Space] Toggle  [Enter] Open/Select  [Backspace] Up  [/] Filter  [Esc] Cancel";
        }
        else if (_mode is FilePickerMode.Directories or FilePickerMode.All)
        {
            hints = "[Enter] Open  [Space] Select  [Backspace] Up  [/] Filter  [Esc] Cancel";
        }
        else
        {
            hints = "[Enter] Open/Select  [Backspace] Up  [/] Filter  [Esc] Cancel";
        }

        if (hints.Length > width)
            hints = hints[..width];

        context.WriteAt(0, row, hints);
        context.ResetColors();
    }

    #endregion

    #region Utilities

    private static bool MatchesGlob(string fileName, string pattern)
    {
        return FileSystemName.MatchesSimpleExpression(pattern, fileName, ignoreCase: true);
    }

    private void EmitDirectoryChanged(string path)
    {
        if (!_disposed)
            _directoryChanged.OnNext(path);
    }

    private void EmitSelectionConfirmed(IReadOnlyList<string> paths)
    {
        if (!_disposed)
            _selectionConfirmed.OnNext(paths);
    }

    private void Invalidate()
    {
        if (!_disposed)
            _invalidated.OnNext(Unit.Default);
    }

    #endregion

    public void Dispose()
    {
        if (_disposed)
            return;

        _disposed = true;

        if (_isFiltering)
        {
            _isFiltering = false;
            _filterInput?.OnBlurred();
            _filterInput?.OnDeactivate();
        }

        _filterInvalidationSub?.Dispose();

        _invalidated.OnCompleted();
        _invalidated.Dispose();
        _selectionConfirmed.OnCompleted();
        _selectionConfirmed.Dispose();
        _cancelled.OnCompleted();
        _cancelled.Dispose();
        _directoryChanged.OnCompleted();
        _directoryChanged.Dispose();

        _filterInput?.Dispose();
    }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
488
489
490
491
492
493
494
495
496
497
498
499
500
501
502
503
504
505
506
507
508
509
510
511
512
513
514
515
516
517
518
519
520
521
522
523
524
525
526
527
528
529
530
531
532
533
534
535
536
537
538
539
540
541
542
543
544
545
546
547
548
549
550
551
552
553
554
555
556
557
558
559
560
561
562
563
564
565
566
567
568
569
570
571
572
573
574
575
576
577
578
579
580
581
582
583
584
585
586
587
588
589
590
591
592
593
594
595
596
597
598
599
600
601
602
603
604
605
606
607
608
609
610
611
612
613
614
615
616
617
618
619
620
621
622
623
624
625
626
627
628
629
630
631
632
633
634
635
636
637
638
639
640
641
642
643
644
645
646
647
648
649
650
651
652
653
654
655
656
657
658
659
660
661
662
663
664
665
666
667
668
669
670
671
672
673
674
675
676
677
678
679
680
681
682
683
684
685
686
687
688
689
690
691
692
693
694
695
696
697
698
699
700
701
702
703
704
705
706
707
708
709
710
711
712
713
714
715
716
717
718
719
720
721
722
723
724
725
726
727
728
729
730
731
732
733
734
735
736
737
738
739
740
741
742
743
744
745
746
747
748
749
750
751
752
753
754
755
756
757
758
759
760
761
762
763
764
765
766
767
768
769
770
771
772
773
774
775
776
777
778
779
780
781
782
783
784
785
786
787
788
789
790
791
792
793
794
795
796
797
798
799
800
801
802
803
804
805
806
807
808
809
810
811
812
813
814
815
816
817
818
819
820
821
822
823
824
825
826
827
828
829
830
831
832
833
834
835
836
837
838
839
840
841
842
843
844
845
846
847
848
849
850
851
852
853
854
855
856
857
858
859
860

View IFileSystemProvider implementation

csharp

// Copyright (c) Petabridge, LLC. All rights reserved.
// Licensed under the Apache 2.0 license. See LICENSE file in the project root for full license information.

namespace Termina.Layout;

/// <summary>
/// Abstracts filesystem access for <see cref="FilePickerNode"/> to enable testability.
/// </summary>
public interface IFileSystemProvider
{
    /// <summary>
    /// Returns all file and directory entries in the given directory, sorted with
    /// directories first (alphabetical) then files (alphabetical).
    /// </summary>
    IReadOnlyList<FileSystemEntry> GetEntries(string directoryPath);

    /// <summary>
    /// Returns true if the given directory exists and is accessible.
    /// </summary>
    bool DirectoryExists(string path);

    /// <summary>
    /// Returns the parent directory path, or null if already at a root.
    /// </summary>
    string? GetParentDirectory(string path);
}

/// <summary>
/// Default <see cref="IFileSystemProvider"/> backed by <see cref="System.IO"/>.
/// </summary>
public sealed class DefaultFileSystemProvider : IFileSystemProvider
{
    public static readonly DefaultFileSystemProvider Instance = new();

    public IReadOnlyList<FileSystemEntry> GetEntries(string directoryPath)
    {
        var dir = new DirectoryInfo(directoryPath);
        if (!dir.Exists)
            return [];

        var entries = new List<FileSystemEntry>();

        try
        {
            foreach (var d in dir.EnumerateDirectories())
            {
                try
                {
                    entries.Add(new FileSystemEntry(d.Name, d.FullName, IsDirectory: true,
                        LastModified: d.LastWriteTimeUtc));
                }
                catch (UnauthorizedAccessException) { }
                catch (IOException) { }
            }
        }
        catch (UnauthorizedAccessException) { }
        catch (IOException) { }

        try
        {
            foreach (var f in dir.EnumerateFiles())
            {
                try
                {
                    entries.Add(new FileSystemEntry(f.Name, f.FullName, IsDirectory: false,
                        Size: f.Length, LastModified: f.LastWriteTimeUtc));
                }
                catch (UnauthorizedAccessException) { }
                catch (IOException) { }
            }
        }
        catch (UnauthorizedAccessException) { }
        catch (IOException) { }

        entries.Sort((a, b) =>
        {
            if (a.IsDirectory != b.IsDirectory)
                return a.IsDirectory ? -1 : 1;
            return string.Compare(a.Name, b.Name, StringComparison.OrdinalIgnoreCase);
        });

        return entries;
    }

    public bool DirectoryExists(string path)
    {
        return Directory.Exists(path);
    }

    public string? GetParentDirectory(string path)
    {
        if (string.IsNullOrWhiteSpace(path))
            return null;

        try
        {
            // Trim trailing separators: Directory.GetParent("/home/user/")
            // would otherwise return "/home/user" — the same directory.
            var trimmed = Path.TrimEndingDirectorySeparator(path);
            return Directory.GetParent(trimmed)?.FullName;
        }
        catch (ArgumentException)
        {
            return null;
        }
        catch (IOException)
        {
            return null;
        }
    }
}

View FileSystemEntry implementation

csharp

// Copyright (c) Petabridge, LLC. All rights reserved.
// Licensed under the Apache 2.0 license. See LICENSE file in the project root for full license information.

namespace Termina.Layout;

/// <summary>
/// Represents a file or directory entry in a <see cref="FilePickerNode"/>.
/// </summary>
public sealed record FileSystemEntry(
    string Name,
    string FullPath,
    bool IsDirectory,
    long? Size = null,
    DateTimeOffset? LastModified = null);

FilePickerNode ​

Basic Usage ​

Features ​

Picker Modes ​

Selection Modes ​

Single Select (Default) ​

Multi-Select ​

Keyboard Shortcuts ​

Browsing ​

Filtering ​

Glob File Filter ​

Hidden Files ​

Sizing ​

Styling ​

Testing with IFileSystemProvider ​

Complete Example ​

Observables ​

API Reference ​

Constructor ​

Properties ​

Fluent Methods ​

Enums ​

FileSystemEntry ​

Source Code ​

FilePickerNode

Basic Usage

Features

Picker Modes

Selection Modes

Single Select (Default)

Multi-Select

Keyboard Shortcuts

Browsing

Filtering

Glob File Filter

Hidden Files

Sizing

Styling

Testing with IFileSystemProvider

Complete Example

Observables

API Reference

Constructor

Properties

Fluent Methods

Enums

FileSystemEntry

Source Code
